Self-triggering centrifugal pumps

Caractéristiques :

- Single speed pump, 1500 rpm
- Electronic control pump:500 to 1800 rpm
- Pumps for use in a potentially explosive atmosphere (ATEX)
- Stainless steel 316 L. pump
- Stainless steel cart-mounted pump

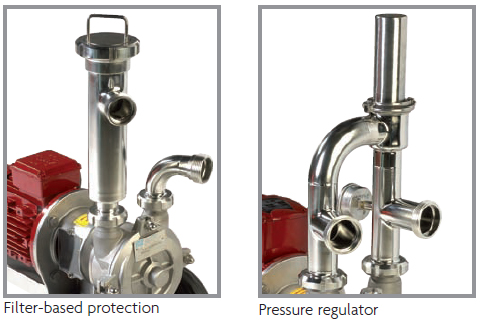

Options :

- Speed control
- Suction / overflow elbow
- T-shaped filter
- Pressure regulator
- DIN or SMS threads
- Pressure switch
- Radio control

Equipement électrique :

- Rotational direction inverter
- Circuit breaker
- 10 metres of cable
- Outlet

Utilisation :

Pumps ideally suited to the transport of various fluids such as fruit juice, milk, serum, syrup, oil, wine, spirits, or chemical and pharmaceutical products. They can also be used with foam- and gas-forming products, with partially filled suction tubes. Thanks to the materials and methods used for manufacturing, these pumps can be quickly disassembled, which makes them ideal for the food industry (dairy and beverages). Due to their specific design, these pumps can only empty suction tubes.

Façonnage :

Ref. DN
CA21 40
CA31 40
CA41 40
CA51 50
CA66 65
CA81 80

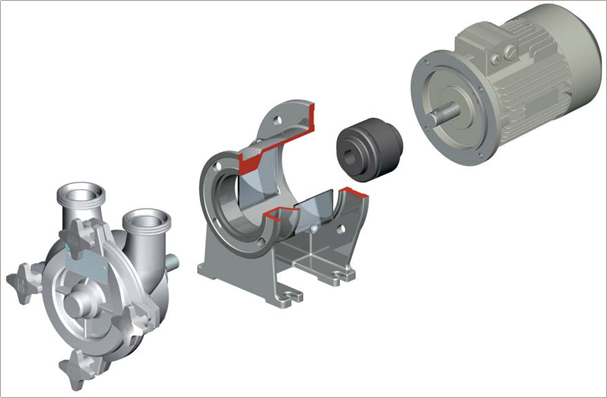

Plan :

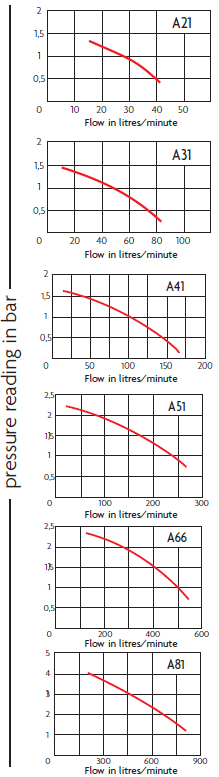

Courbes :

References

1 speed motor

References On trolley With electrical equipment Flow (L/min) kW Speed (rpm)
CA21
2500 0,37 1500
CA31
5000 0,55 1500
CA41
10000 1,1 1500
CA51
18000 2,2 1500
CA66
30000 4 1500
CA81
50000 9 1500

Electronic regulator

References On trolley With electrical equipment Flow (L/min) kW Speed (rpm)
CAE21
500 to 2700 0,55 500 to 1800
CAE31
1000 to 6000 0,75 500 to 1800
CAE41
2000 to 11000 1,5 500 to 1800
CAE51
4000 to 21000 2,2 500 to 1800
CAE66
6000 to 36000 4 500 to 1800
CAE81
to definy 15 500 to 1800

ATEX pumps (use in a potentially explosive atmosphere)

References On trolley With electrical equipment Flow (L/min) kW Speed (rpm)
CA21X
2500 0,55 1500
CA31X
5000 0,75 1500
CA41X
10000 1,5 1500
CA51X
18000 3 1500
CA66X
30000 4 1500
CA81X
50000 11 1500
